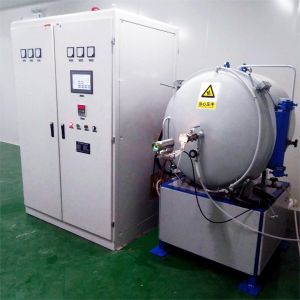

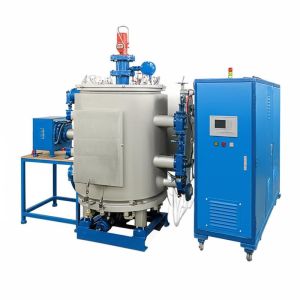

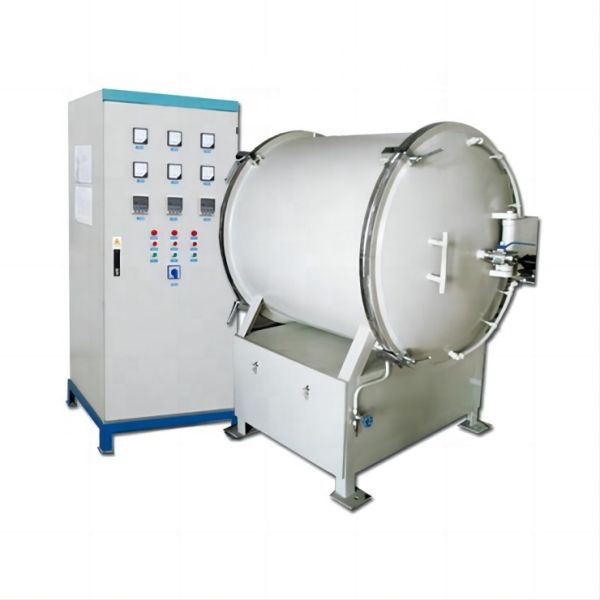

3000℃ Induction Vacuum Graphitization Furnace with IGBT and Thyristor Control and 1 Year Warranty

Hunan Jingtan Automation Equipment Co., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
  • Product Details
  • Company Profile

3000℃ Induction Vacuum Graphitization Furnace with IGBT and Thyristor Control and 1 Year Warranty

Products Description
Continuous graphitization furnaces:
Graphitization furnace is a high-performance intelligent heating furnace introduced by our engineering and technical personnel to digest and absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace design technology.
Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature degreasing, impurity removal, etc.) under vacuum or gas protection.
Ultimate Temperature
≤ 3200℃
Common Temperature
Normal Temperature - 3000℃
High Temperature Zone Volume(mm)
Φ100X150 φ200X300 φ300X500
Working atmosphere in furnace
Vacuum,hydrogen,nitrogen,inert gases,etc
Temperature Uniformity
≤±10℃
Temperature Measurement
Far infrared optical temperature measurement (double connector automatic switch)
Temperature Measurement accuracy
0.2~0.75%
Temperature Control Accuracy
±1℃
Temperature Control
Program control and manual control
Limit Heating Rate
80℃/ min (empty furnace, depending on the volume of high temperature zone and furnace structure)
Power Supply
IGBT control, thyristor control

Application:

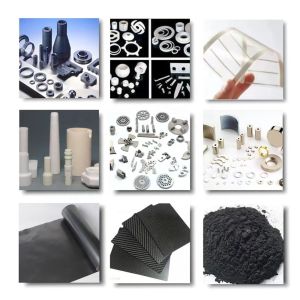

Continuous graphitization furnaces are used for high temperature treatment and graphitization of carbon structural parts (products), c/c composite products, carbon fiber products, sintered graphitization of carbon fiber filaments and other materials that can be sintered and melted in a carbon environment.



Application:
Used for high temperature treatment and graphitization of carbon structural parts (products), c/c composite products, carbon
fiber products, sintered graphitization of carbon fiber filaments
and other materials that can be sintered and melted in a carbon
environment.

Characteristics:

● Reach the limit temperature of 3200℃, the common temperature of 3000℃ high temperature furnace, meet the sintering and graphitization of various materials.
● The digital display intelligent temperature control system, automatic, high precision to complete the temperature control process, the system can be according to the given warming curve warming, and can store 40 sections of a total of 200
● Adopt internal circulation pure water cooling system; Digital flow monitoring system.
● Comprehensive PLC water, electricity, gas automatic control and protection system.
Company Profile










Our company philosoph:
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team、stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:

Patent for high temperature graphitization furnace:


Patent for high temperature vacuum hot pressure furnace:


Patent for high temperature continuous furifing graphitization furnace:

Patent for carbonization sintering furnace:

Patent for bottom discharge graphitization furnace:

Patent for carbon fiber continuous furnace
